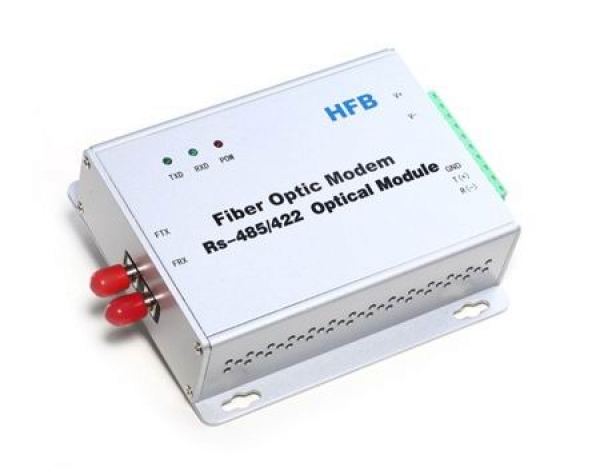

RS-485 Modbus Fiber Optic Converter
Point to point/Multi-drop Bus/Self-healing Ring Fiber Links
The RS-485 Fiber Optic Converter data series uses the most advanced digital technologies to provide excellent repeatable performance for today's data systems. It supports transmission of one bi-directional data channel over one multimode or singlemode optical fiber. RS232, RS422 and RS485 (2 wire & 4 wire) standards are fully supported. The plug-and-play design ensures ease of installation with no electrical or optical adjustment needed. LED indicators are provided to show the operational status of the unit clearly.
The series is available in compact wall mount or 3U chassis card.
The RS-485 Series converter is equipped with a multiple interface circuit that can handle RS-485 serial interfaces and multi-mode or single- mode fiber. RS-485 converters are used to extend serial transmission distance up to 2 km (multi-mode fiber) or up to 20-100km (single- mode fiber)...Auto Baud Rate DetectionThe RS-485 Series incorporates a method for automatically detecting the serial signal baud rate by hardware. This is an extremely convenient feature for the user. Even if a device's baud rate is changed, the signal will still be transmitted through the RS-485 to fiber converter without any problem.
Product Features
Supports RS232, RS422 and RS485(Modbus)
Multimode and singlemode solutions
Switchable 120Ω Termination and biasing
LED indicators provide quick diagnosis of all important system parameters
Up to 14 units in a 3U chassis
Compact and 3U chassis card configuration
Specifications:
| Data | |
| Data Formats | RS232,RS422,RS485 |
| RS232 Data Rate | 115.2kbps |
| RS422 / 485 Data Rate | 0-512 kbps or 1Mkbps |
| Bit Error Rate | <1 x 10-12 |
| Connectors | |
| Data | Screw Block Terminal |
| Fiber | ST, SC or FC (ST fitted as standard) |
| Environmental | |
| Operating Temperat ure | - 3 0 C--- +70 C |
| Storage Temperature | - 3 0 C--- +70 C |
| Operating Humidity | 0- 95% |
| MTBF | >100,000 Hours |
| Optical | |
| Fiber | Multimode or Singlemode |
| Wavelength | MM: 850nm, SM: 1310nm |
| Number of fibers | 2 or 1 |
| POWER | |
| Power Input | AC 220V 110v or DC+110V +5V +12V +24V +48V Option |
| Mechanical | |
| Dimensions | 125(L)×110(W)×36(H )Wall Mount & DIN Rail |
Ordering Information:
| Model Number | Description | Fiber No. | Fiber Mode | Fiber Connector |
| HFB-FO-485-P1M | Point to point Link,Single Fiber(BI-DI), 2km | 1 | Multi Mode | ST/SC/FC |
| HFB-FO-485-P2M | Point to point Link,Dual Fiber, 2km | 2 | Multi Mode | ST/SC/FC |
| HFB-FO-485-P1S | Point to point Link,Single Fiber(BI-DI), 20km | 1 | Single Mode | ST/SC/FC |
| HFB-FO-485-P2S | Point to point Link,Dual Fiber, 20km | 2 | Single Mode | ST/SC/FC |
