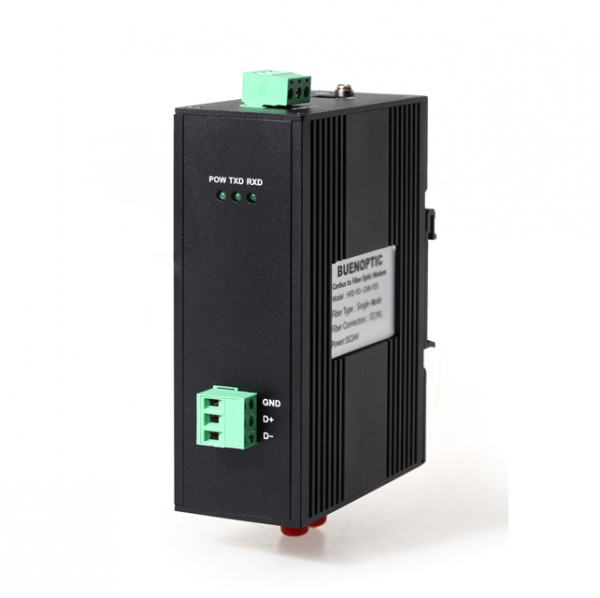

BE-CAN-FO CAN Over Fiber optic Converter(No Cascading)
Transmission rate:
The BE-CAN-FO series CAN bus to Fiber Converter support all the transmission speeds (transmission rates):0-1Mbps.The transmission rate is set automatically as soon as the canbus BE-CAN-FO receives a frame. The setting or adjustment is dependent on the transmission rate. The BE-CAN-FO CAN FO converter is developed out based on the growing market demand for CAN Bus long distance transmission without any cascading(attenuation).The BE-CAN-FO uses the most advanced new technology in the world,which is the foundation of the high rate transmission(1MB) over more than 20km without any cascading or delay.Thanks to the advanced technology and high performance,the BE-CAN-FO can be applied in very important projects and harsh places.
Segment monitoring at the optical line:
Each receiver monitors the optical line port connected to it for receceive frames and status. If faulty frames are received by the receiver, or no single for longer than the maximum permitted time, forwarding of the received signals is blocked until the port status is OK,frames can be received again correctly.
Network Topologies:
The following network topologies can be realized with the BE-CAN-FO:
Point-to-point topologies Multi-drop Bus
Fiber Mode: Single mode or Multi Mode
Feature and benefits:
Buffer function:The BE-CAN-FO CAN Bus Fiber Optic Converter can protect the data from being lost.The isolation inside the BE-CAN-FO can ensure the converters work normally under harsh environments.Anti-stream function,Buffering: 1000 frames.No cascading: The BE-CAN-FO has no cascading,no frame loss when data is at high rate or long distance transmission.
Reliablity: Compared with other brands,the BE-CAN-FO can help build up more stable and secure networks,it can maximumly reach 6500 frames/S.
Other Specs:
| Technical Data | |
| Voltage/power supply | 9 to 30V DC |
| Operating voltage | 9 V to 30 V DC, typ. 24 V, |
| Current consumption | typ. 80 mA@24V> |
| Output voltage/current (Pin 6 Sub-D socket) | 5 V +5%,–10%/ 90 mA |
| Signaling contact Signal transmission | Max .switch DC24V@2A or This email address is being protected from spambots. You need JavaScript enabled to view it. |
| Transmission rate | 0-1Mbps |
| Setting transmission rate | Automatic or Switch setting |
| Bit error rate | < 10-9 |
| Electrical port | Terminal or DB9 |
| Input/output signal | CAN2.0A, CAN2.0B,ISO-11898 |
| PIN assignment | |
| Optical ports | 1 or 2 (2 as standard) |
| Wavelength | SM:1310 nm, MM:850nm |
|
optical power:– in glass fiber 9/125um – in glass fiber G 62.5/125 |
-9dBm – -18 dBm -13 dBm – -20 dBm |
| Receiver sensitivity | -34dBm |
|
Transmission distance:with glass fiber 9/125um with glass fiber G 62,5/125 |
0 – 20,000 m (0.3 dB/km) 0 – 3,000 m (2.0 dB/km) |
| Connector | ST/FC/SC |
| Others | |
| Ambient temperature | -30 °C to +70 °C |
| Storage temperature | –40 °C to +85 °C |
| Relative humidity | <95 %, non-condensing |
| Protection class | IP 30 |
| Dimensions (W x H x D) | 29 x 86 x 155mm(W*D*H) |
| Housing material/Color | Die-cast zinc/Black |
| Weight | approx. 600 g |
Limit class B (EN 55022)
EN 61000-4-2
EN 61000-4-3)
Burst: On power supply lines and shielded RS 485 bus lines: ±2 kV (EN 61000-4-4)
Surge: Power lines: ±1 kV symmetrical,Shielded RS 485 lines: ±2 kV asymmetrical (EN 61000-4-5)
Application: The BE-CAN-FO CAN Bus to Fiber Optic converter can be used in fire alarm system,radar system,security,industrial automation,solar palnt and other industrial fields.
Odering Information:
|
Model Number |
Description |
Fiber No. |
Fiber Mode |
Fiber Connector |
|
BE-CAN-FO-P1M |
Point to point Link,Single Fiber(BI-DI), 2km |
1 |
Multi Mode |
ST/SC/FC |
|
BE-CAN-FO-P2M |
Point to point Link,Dual Fiber, 2km |
2 |
Multi Mode |
ST/SC/FC |
|
BE-CAN-FO-P1S |
Point to point Link,Single Fiber(BI-DI), 20km |
1 |
Single Mode |
ST/SC/FC |
|
BE-CAN-FO-P2S |
Point to point Link,Dual Fiber, 20km |
2 |
Single Mode |
ST/SC/FC |
