Devicenet / CAN Bus / Canopen Fiber Optic Extender Converter
he HFD-FO-DEV series DeviceNet fiber optic extender products.which used the most advanced technlogy in the world,can provide an optical point-to-point or bus network connection for DeviceNet data interfaces on one or two, multi mode or single mode optical fibers. The DeviceNet Point-to-Point Transmission units operate as the end or terminal points and provide an electrical connection and a two fibre optical connection. The units support CAN 1.0 and CAN 2.0 CAN standards, and CAN. And are transparent to all high level protocols.

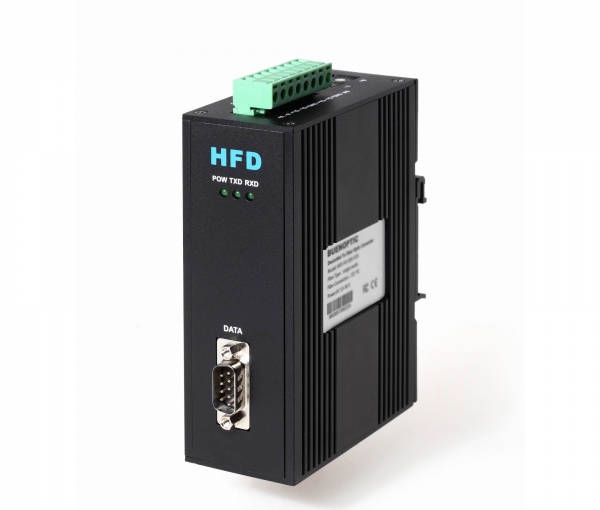

This series DeviceNet Fiber Optic Converter is available in either wall mount, DIN rail or 3U chassis card configurations.
Product Features of the Devicenet fiber optic extender:
Multi mode and single mode
Single fiber solution supported
New technology: Long distance transmission(20km) when baud rate is at high speed, No cascading.
DIN Rail, Wall mount, rack or chassis configurations, Dual power supply
Data Protocol for option: DeviceNet, CAN Bus, CANOpen
Other specs of the Devicenet fiber optic extender:
| Data | |
| Data Formats | CAN1.0 ,CAN2.0 , Device Net,CAN Open |
| CAN Data Rate | 125K/250K/500K |
| Bit Error Rate | <1 x 10-12 |
| Connectors | |
| Data | Screw Block Terminal |
| Fiber | ST, SC or FC (ST fitted as standard) |
| Environmental | |
| Operating Temperat ure | - 3 0 C--- +70 C |
| Storage Temperature | - 40 C--- +85 C |
| Operating Humidity | 0- 95% |
| MTBF | >100,000 Hours |
| Optical | |
| Fiber | Multi mode or single mode |
| Wavelength | MM: 850nm, SM: 1310nm |
| Number of fibers | 2 or 1 |
| POWER | |
| Power Input | DC 9 ~ 30 V |
| Mechanical | |
| Dimensions | DIN Rail 124.5*43*88.5mm(H*W*D) |
Odering Information:
|
Model Number |
Description |
Fiber No. |
Fiber Mode |
Fiber Connector |
|
HFD-FO-DEV-P1M |
Point to point Link,Single Fiber(BI-DI), 2km |
1 |
Multi Mode |
ST/SC/FC |
|
HFD-FO-DEV-P2M |
Point to point Link,Dual Fiber, 2km |
2 |
Multi Mode |
ST/SC/FC |
|
HFD-FO-DEV-P1S |
Point to point Link,Single Fiber(BI-DI), 20km |
1 |
Single Mode |
ST/SC/FC |
|
HFD-FO-DEV-P2S |
Point to point Link,Dual Fiber, 20km |
2 |
Single Mode |
ST/SC/FC |
|
HFD-FO-DEV-M2M |
Multi Drop Bus Link,Dual Fiber(BI-DI), 2km |
2 |
Multi Mode |
ST/SC/FC |
|
HFD-FO-DEV-M4M |
Multi Drop Bus Link,4 Fiber, 2km |
4 |
Multi Mode |
ST/SC/FC |
|
HFD-FO-DEV-M2S |
Multi Drop Bus Link,Dual Fiber(BI-DI), 20km |
2 |
Single Mode |
ST/SC/FC |
|
HFD-FO-DEV-M4S |
Multi Drop Bus Link,4 Fiber, 20km |
4 |
Single Mode |
ST/SC/FC |
