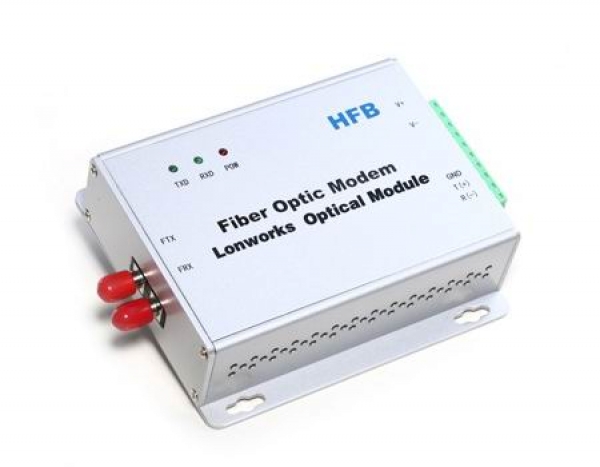

Lonworks(LON) to Fiber Optic Media Converter
(Point to point,Multi-drop Bus) Topologies,FTT-10A Chip.
The Lonworks Fiber Optic Converter(Modem) is a multi-master and high performance Field bus Control System (FCS). Our Fiber Optic Modem uses the fiber cable as its transmission medium and utilizes Optical Fiber modulation/demodulation technology to changes the electric medium into a light medium transmission.It's based on advanced technology and the outcome of great R & D team of BE.
The Lonworks Fiber Optic Converter(Modem) product eliminates many of the disadvantages of copper cable. Examples of these disadvantages are EMI/RFI, ground loops (electrical isolation with fiber), high attenuation (high signal loss), short transmission distance between nodes of a system, and potential lightning damage.
The Lonworks Fiber Optic Converter(Modem) can be widely used, such as Building Automation System(BAS), Industrial Controls, Intelligent Transportation Systems (ITS), Industrial Networking, Supervisory Control and Data (SCADA) and so on
Technical Specifications:
| Data | |
| Data Formats | LONWORKS(LonTalk) |
| LONWORKS Data Rate | 78kbps FTT-10A |
| Bit Error Rate | < 1 x 10-12 |
| Connectors | |
| Data | Screw Block Terminal |
| Fiber | ST, SC or FC (ST fitted as standard) |
| Environmental | |
| Operating Temperat ure | - 3 0 C--- +70 C |
| Storage Temperature | - 40 C--- +90 C |
| Operating Humidity | 0- 95% |
| MTBF | > 100, 000 Hours |
| Optical | |
| Fiber | Multi mode or Single mode |
| Wavelength | MM: 850nm, SM: 1310nm |
| Number of fibers | 2 or 1 |
| POWER | |
| Power Input | AC 220V 110v or DC+110V +5V +12V +24V +48V Option |
| Mechanical | |
| Dimensions | 125(L)× 110(W)× 36(H )Wall Mount & DIN Rail |
Odering Information:
|
Model Number |
Description |
Fiber No. |
Fiber Mode |
Fiber Connector |
|
HFB-FO-LON-P1M |
Point to point Link,Single Fiber(BI-DI), 2km |
1 |
Multi Mode |
ST/SC/FC |
|
HFB-FO-LON-P2M |
Point to point Link,Dual Fiber, 2km |
2 |
Multi Mode |
ST/SC/FC |
|
HFB-FO-LON-P1S |
Point to point Link,Single Fiber(BI-DI), 20km |
1 |
Single Mode |
ST/SC/FC |
|
HFB-FO-LON-P2S |
Point to point Link,Dual Fiber, 20km |
2 |
Single Mode |
ST/SC/FC |
|
HFB-FO-LON-M4M |
Multi drop Bus Link,4 Fiber, 2km |
4 |
Multi Mode |
ST/SC/FC |
|
HFB-FO-LON-M4S |
Multi drop Bus Link,4 Fiber, 20km |
4 |
Single Mode |
ST/SC/FC |
