Product Description:

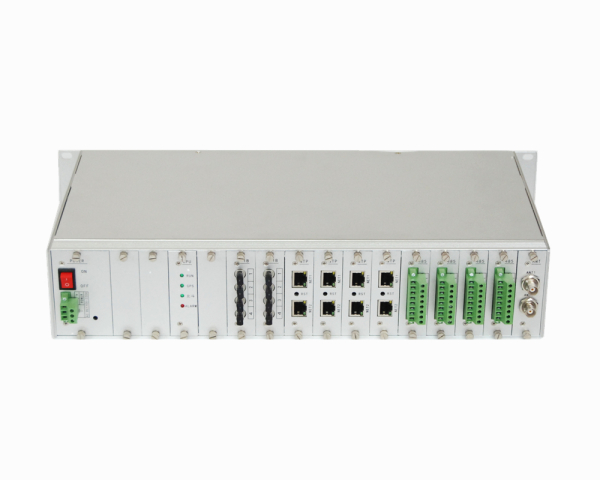

The SYN-8000 IRIG-B to Fiber Optic Extender that we manufactured are specifically for electric power system, automation system, telecom system, CCTV and traffic system that need high-precise time requirer．Our system is based on GPS, and the precision of NTP time output is 100ns and receive accuracy can be 1ms and IRIG-B 1us. It can track 12 GPS satellites at the same time, and selects the best satellite automatically for locating and timing．It outputs UTC time and IRIG-B time codes, and the synchronous precision is 1μs.The SYN-8000 is quite cost effective and high quality, its highest record of MTBF is 12 years. The SYN-8000 supports 13 channels of slot modular cards, each modular card can be with the output interfaces of various time codes.
- The SYN-8000 can be used as the IRIG-B to fiber optic extender to repeate the distance, the slot cards can support at most 48 channels of fiber optic connectors.
- The SYN-8000 supports IRIG-B time input or take GPS as the time input source and IRIG-B fiber optic ports as the output.
Application
Substation Automation(SCADA/EMS)
· Video Surveillance(CCTV system)
· Intelligent Traffic System
· Telecommunication
· Bank Time Systems
· Schools & Hospitals
· Driverless System
· Other fields that require high time accuracy
