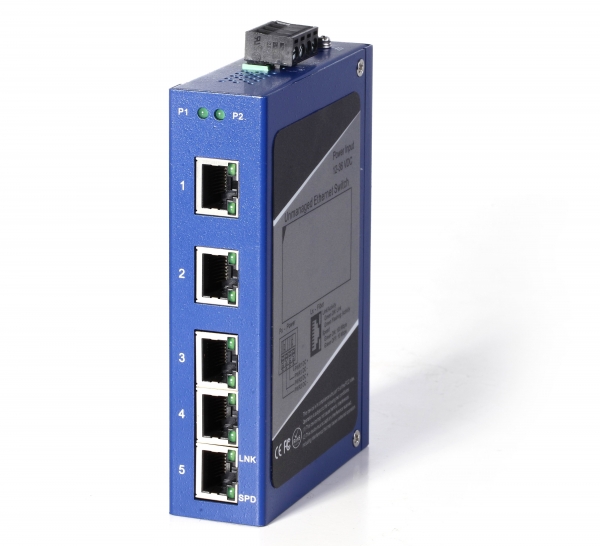

DIN-Rail 10/100M Managed Industrial Ethernet Switch
* RingOn™ Redundant Ring Technology, Recovery Time within 15ms, Supports RSTP/STP
* Enriched Management Features: QoS, IGMP snooping/GMRP,VLAN, SNMP V1/V2/V3
* Multiple Redundant AC/DC Power Choices
* Upgrated EMI Immunity
Specifications:
* Technology
Network Standards:
IEEE802.3 10Base-T
IEEE802.3u 100BaseT(X), 100BaseFX
IEEE802.3x Flow Control
IEEE802.1p Classe of Service
IEEE802.1Q VLAN Tagging
IEEE802.1ad LACP
Processing Type:Store and Forward
MAC Address:8k MAC Address Table
Management:by Web Browser
RingOn™:Recovery Time within 15ms
Broadcasting Storm Control:Automatic
Flow Control:Full/Half Duplex Back Pressure Flow Control
Protocols support by our Ethernet Switch:SNMP V1/V2/V3, DHCP Server, NTP/SNTP, SMTP, IGMP Snooping/GMRP, LACP, RMON,
HTTPS, Telnet, Syslog, HTTP,Profinet,Modbus TCP,IEC-61850,BacNet,DNP3,IEC104,OPC & Other Protocols.
* Switch Properties
Priority Queues:4
IGMP Groups:64
Max. Available VLANs:256
VLAN ID Range:1~4096
* Interface
RJ45 Port Connectors:10/100Base Auto-sensing, Full/Half Duplex MDI/MDI-X Auto-Negotiation
Fiber Port Connectors:100BaseFX, SC or ST connectors, Single-Mode or Multi-Mode
LED Indicators:Power, Port Status
Console Port:DB9 male
Output Warning:Relay, Standard 2 Pin, 0.5A@24VDC
*Power Requirements
Low Voltage Range:12~36VDC; 10~24VAC
High Voltage Range:200~350VDC; 165~265VAC
Connection:Standard 4 Pin Dual Power Connector
* Optical Fiber
| Mode | Typical Dist | Wavelength | Cable Size | TX Power | Rx Sensitivity | Transmission speed |
| Multi | 2km | 1310nm | 62.5/125um | -23.5~-14dBm | < -35dBm | 10/100Mbps |
| Single | 15km | 1310nm | 9/125um | -15~-8dBm | < -35dBm | 10/100Mbps |
* Physical Characteristics
Case:Slim Metal Case, IP40 Design
Dimensions:(W×H×D):
HFB8M:49×139×115mm
HFB16M:70×149×130mm
HFB24M:91×149×130mm
DIN Rail or Panel Mounting
* Environment Limits
Standard Temp Models:-10˚C to 60˚C
Extended Temp Models:-40˚C to 75˚C
Storage Temperature:-40 to 85˚C
Ambient Relative Humidity: 10 to 95%(Non-condensing)
* Agency Approvals
EMI:FCC Part15, CISPR(EN55022) Class A
EMS:
EN61000-4-2(ESD), Lv3
EN61000-4-3(RS), Lv3
EN61000-4-4(EFT), Lv3
EN61000-4-5(Surge), Lv3
EN61000-4-6(CS), Lv3
* Warranty:5 years
* Ordering Information
| Product Model | Connectors | ||||||
| Standard Temperature Models(-10˚C~60℃) | Extended Temperature Models(-40˚C~75℃) | 10/100BaseT(X) | 100BaseFX | ||||
| Multi-mode, SC Connectors | Single-mode, SC Connectors | ||||||
| HFD8M Series | |||||||
| HFD8M | HFD8M-W | 8 | |||||
| HFD8M-2SC | HFD8M-2SC-W | 6 | 2 | ||||
| HFD8M-2SSC | HFD8M-2SSC-W | 6 | 2 | ||||
| HFD8M-4SC | HFD8M-4SC-W | 4 | 4 | ||||
| HFD8M-4SSC | HFD8M-4SSC-W | 4 | 4 | ||||
| HFD16M Series | |||||||
| HFD16M | HFD16M-W | 16 | |||||
| HFD16M-2SC | HFD16M-2SC-W | 14 | 2 | ||||
| HFD16M-2SSC | HFD16M-2SSC-W | 14 | 2 | ||||
| HFD16M-4SC | HFD16M-4SC-W | 12 | 4 | ||||
| HFD16M-4SSC | HFD16M-4SSC-W | 12 | 4 | ||||
| HFD24M Series | |||||||
| HFD24M | HFD24M-W | 24 | |||||
| HFD24M-2SC | HFD24M-2SC-W | 22 | 2 | ||||
| HFD24M-2SSC | HFD24M-2SSC-W | 22 | 2 | ||||
| HFD24M-4SC | HFD24M-4SC-W | 20 | 4 | ||||
| HFD24M-4SSC | HFD24M-4SSC-W | 20 | 4 | ||||
| HFD24M-6SC | HFD24M-6SC-W | 18 | 6 | ||||
| HFD24M-6SSC | HFD24M-6SSC-W | 18 | 6 | ||||
