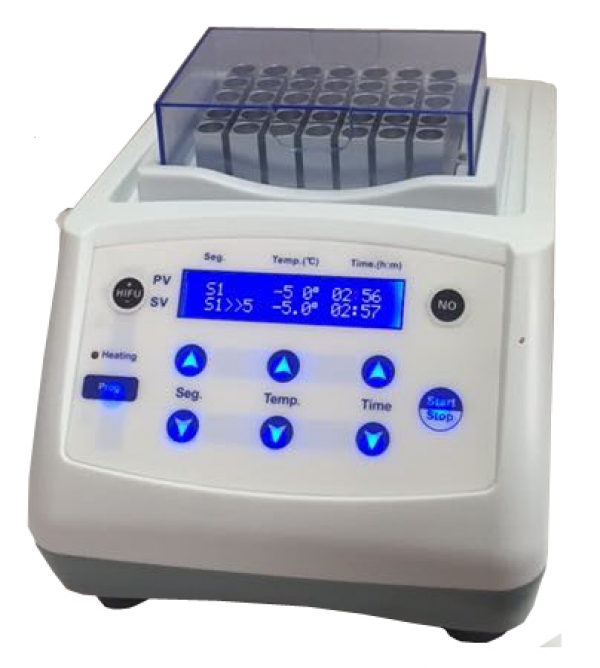

Digital Dry Bath Heating and Cooling Thermostat
(BEMK-20)
Product Description
Digital Dry Bath BEMK-20 is a thermostat device controlled by microcomputer with semiconductor heating & cooling technology. It can be widely used in sample preservation, enzyme preservation and reaction, nucleic acid and protein denaturation, PCR reaction, electrophoresis predenaturation and serum coagulation, etc.
Product Features
1. Large LCD screen Display, friendly human-machine interface.
2. Real-time temperature display and time decreasing display.
3. Strong programming function by which it can control multi temperature nodes-support the setting and continuous running of maximum 5 temperature nodes' temperature and thermosatic time
4. The program has automatic fault detection and buzzer alarm system.
5. Temperature diviation calibration function can accurately set the temperature.
6. Convenient module replacement, easy to clean and disinfect.
7. The device has overtemperature security system
Technical Specification
|
The range of temperature |
-10 ℃ ～ 150 ℃ |
|
Time setting |
1min ～ 99h59min |
|
Temperature stability@ 100 ℃ |
+/- 0.5 ℃ |
|
Display Precision |
+/- 0.1 ℃ |
|
Cooling time (20℃to 0℃) |
20min or less |
|
Heating time (25L to 150℃) |
20min or less |
|
Size (mm) |
270x190x170 |
|
Power supply |
AC220V/120V, 50/60hz,250W |
Programs Option
|
Model |
Aperture and Tube |
Highest Temperature |
|
LC-A |
96*0.2ml Standard Tube |
100℃ |
|
LC-B |
54*0.5ml Centrifuge tube |
100℃ |
|
LC-C |
35*1.5ml Centrifuge tube |
100℃ |
|
LC-D |
35*2.0ml Centrifuge tube |
100℃ |
|
LC-E |
15*0.5ml+20*1.5ml Centrifuge tube |
100℃ |
|
LC-F |
24*Diameter≤￠12mm Tube |
100℃ |
|
LC-G |
32*0.2Ml+25*1.5Ml Centrifuge tube |
100℃ |
|
LC-H |
32*0.2Ml+10*0.5Ml+15*1.5Ml Centrifuge tube |
100℃ |
|
LC-I |
103*67*30ml Square groove module |
100℃ |
|
LC-J |
96*0.2ml Enzyme label plate |
100℃ |
|
LC-K |
24*5ml Centrifuge tube |
100℃ |
|
LC-L |
12*15ml High cover |
80℃ |
|
LC-M |
6*50ml High cover |
100℃ |
