Ultrasonic Nano-particle Disperser | Homogenizer for Nano-material Dispersion
(LCD Screen Version)
Product Description

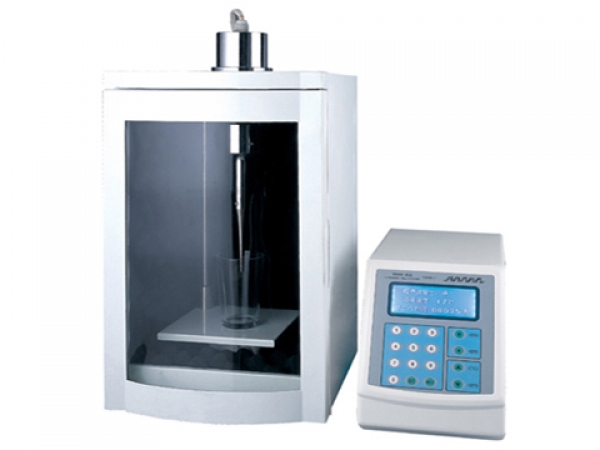

The Ultrasonic Nano-particle Disperser (LCD Screen) is a multifunctional and multipurpose instrument for ultrasonic processing by cavitation in liquid material. Typical applications include nanotechnology (producing nanoparticle materials and Graphene dispersions), cell lysing, sample preparation, homogenization, ChIP Assay, emulsification, disaggregation and deagglomeration, plus uses in the field of sonochemical liquid processing.
Product Features
1. Large TFT screen Display, Touch control for new version
2. Login Password Protection System for data security
3. 20 groups of experimental data can be set and stored, safe and convenient.
4. The ultrasonic power can be adjusted continuously, and the best experimental conditions can be explored.
5. The program has over-temperature/delay/fault protection settings and alarm system,which can protect the test samples to the maximum extent.
6. High and Low temperature bath is optional which can control the temperature between -40 to 200℃
7. We provide the Sound-proof Chamber for standard configuration with perfect transportation.
8. RS232 Interface is optional, which can support the data transmission between the PC and PLC to realize the remote control.
Application
The instrument is widely used in the fields of biology, microbiology, physics, zoology, agronomy, pharmacy, petroleum, etc. It also can be used in Nanotechnology research such as the dispersion of nanomaterials (nanotubes, graphene, silica, etc.); sample homogenization and emulsification; accelerate dissolution, accelerate chemical reaction and other sample processing.
Technical Specification
|
Model |
BEM-150D |
BEM-650D |
BEM -900D |
BEM -1000D |
BEM -1500D |
BEM -1800D |
BEM -3000D |
|
Frequency |
20-25 |
20-25 |
20-25 |
20-25 |
19-21 |
19-21 |
19-21 |
|
（KHz） |
|||||||
|
Power(W) |
0-150 |
0-650 |
0-900W |
10-1000 |
1500 |
20-1800 |
300-3000 |
|
Crushing Capacity |
0.1-50 |
0.1-150 |
0.1-500 |
0.1-600 |
20-1000 |
10-1500 |
100-5000 |
|
（ml） |
|||||||
|
Input &Display |
LCD Screen |
LCD Screen |
LCD Screen |
LCD Screen |
LCD Screen |
LCD Screen |
LCD Screen |
|
Login Password |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Probe（mm） |
Φ6 |
Φ6 |
Φ6 |
Φ6 or 10 |
Φ22 |
Φ20 or 22 |
Φ35 or 50 |
|
Optional Probe（mm） |
Φ2、3、8 |
Φ2、3、8、10、12 |
Φ2、3、8、10、12 |
Φ2、3、8、10、12、15 |
Φ10、15、20、25 |
Φ10、15、20、25 |
Φ15、20、25、35、40、50 |
|
Sample Temperature Protection（℃） |
0-100 |
0-100 |
0-100 |
0-100 |
0-100 |
0-100 |
0-100 |
|
Security System |
Self-diagnosis function, automatic error correction, overload, overtemperature protection ,etc. |
||||||
Probe Option
|
Model |
Inch |
Frequency |
Power Range |
Crushing Capacity |
|
Φ2 |
1/12″ |
20-25KHz |
min-150W |
0.2-5ml |
|
Φ3 |
1/8″ |
20-25KHz |
min-250W |
3-10ml |
|
Φ6 |
1/4″ |
20-25KHz |
20-400W |
10-100ml |
|
Φ10 |
5/12″ |
20-25KHz |
100-600W |
30-300ml |
|
Φ12 |
1/2″ |
20-25KHz |
200-900W |
50-500ml |
|
Φ15 |
5/8″ |
20-25KHz |
300-1000W |
100-600ml |
|
Φ20 |
4/5″ |
19.5-20.5KHz |
400-1100W |
100-1000ml |
|
Φ22 |
5/6″ |
19.5-20.5KHz |
400-1100W |
200-1000ml |
|
Φ25 |
1″ |
19.5-20.5KHz |
800-1500W |
500-1200ml |
