Product Description:

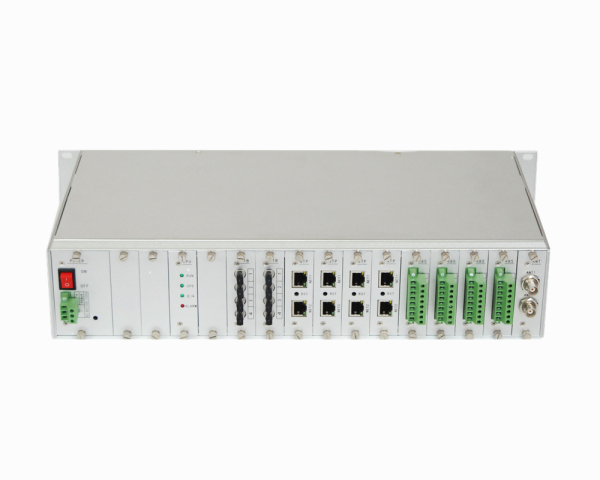

The SYN-8000 Industrial Grade GPS Time Modular System that we manufactured are specifically for electric power system, automation system, telecom system, CCTV and traffic system that need high-precise time requirer．Our system is based on GPS, and the precision of NTP time output is 100ns and receive accuracy can be 1ms and IRIG-B 1us. It can track 12 GPS satellites at the same time, and selects the best satellite automatically for locating and timing．It outputs UTC time and IRIG-B time codes, and the synchronous precision is 1μs.The SYN-8000 is quite cost effective and high quality, its highest record of MTBF is 12 years. The SYN-8000 supports 13 channels of slot modular cards, each modular card can be with the output interfaces of various time codes.
Product Benefits and Features：
- Supports GPS, Beidou, or GPS+Beidou.
- Multiple time signal codes:1PPS,1PPH,1PPH,IRIG-B, serial, NTP/SNTP, which can meet the time synchronization needs of power system substation monitoring system, protection, measurement and control, fault recording and other devices.
- Variety of physical interfaces for time synchronization:RS-485, RS-232, TTL, static air contact, AC Modulation, Ethernet and others.
- High accuracy:1PPS, 1PPM, 1PPH and IRIG-B output through RS-485 and TTL is less than 3 μs, and the time accuracy of 1PPS, 1PPM, 1PPH and IRIG-B output through static air contact is less than 3 μs
- There are many time synchronization signal output interfaces and they are isolated from each other.
- NTP network is provided through 100M Ethernet, which can be used as network time server.
- It has the ability of keeping time with high precision for a long time, and the time keeping error can be selected in different grades.
- It can meet the requirements of master-slave operation. When the number of time synchronization signal output interfaces is not enough, a master-slave time synchronization system can be formed by cascading a master and a slave through IRIG-B.
- Can receive IRIG-B code of RS-485 / 422 interface from two external clock sources.
- It can display real-time time, satellite tracking status, IRIG-B input status, current clock source, alarm information, etc.
- It has locking and alarm relay contact output.
- Supports Both 110V~220V AC and DC.
- Standard 2U chassis enclosure with 13 expansion slots, modular hardware design and back plug-in chassis structure
Expansion Modular Cards(Support 13 channels of cards)
|
Module Type |
Module Model Number |
Module Card Functions |
|
|
Power Module |
POWE |
Power supply |
|
|
CPU Module |
CPU |
CPU of the clock system |
|
|
Antenna Module |
ANT |
GPS receiver module |
|
|
Optional expansion cards |
RS-485 output |
485 |
4 channels of RS-485 output interfaces, The signal format can be 1PPS, 1PPM, 1PPH, IRIG-B or serial message. |
|
Optocoupler null contact output |
Optocoupler |
4 channels of Optocoupler null contact output interfaces, The signal format can be 1PPS, 1PPM, 1PPH or IRIG-B. |
|
|
Fiber optic output |
FIB |
4 channels of fiber optic output interfaces, the signal can be 1PPS, 1PPM, 1PPH, IRIG-B or serial message. |
|
|
RS-232 Output |
232 |
4 channels of RS-232output interfaces, serial message |
|
|
TTL Output |
TTL |
4 channels of TTL output interfaces, the signal can be 1PPS, 1PPM, 1PPH or IRIG-B. |
|
|
NTP Output |
NTP |
2 channels of NTP/SNTP output |
|
|
IEEE1588 Output |
1588 |
1 channel of IEEE1588 interface |
|
Application
Substation Automation(SCADA/EMS)
· Video Surveillance(CCTV system)
· Intelligent Traffic System
· Telecommunication
· Bank Time Systems
· Schools & Hospitals
· Driverless System
· Other fields that require high time accuracy
