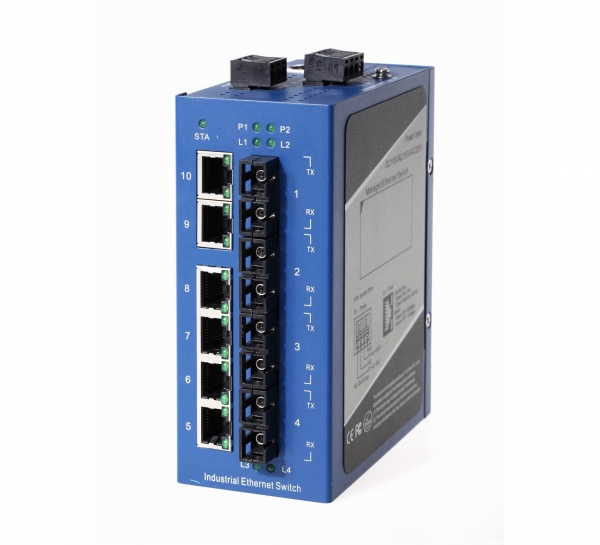

DIN-rail Gigabit Unmanaged Industrial Ethernet Switches
*Up to 4 Gigabit Combo Ports
*Elastic configuration, 100Base fiber port with SC/ST connectors, multi-mode/single-mode models are available
*Multiple power inputs include low voltage redundant power models and 220VAC models
*Broadcasting Storm Controller
Specifications:
* Technology
Network Standards:
IEEE802.3 10Base-T
IEEE802.3u 100BaseT(X) and 100BaseFX
IEEE802.3ad 1000Base(X)
IEEE802.3z 1000BaseSX/LX/HLX/ZX
IEEE802.3x Flow Control
Broadcasting Storm Control:Automatic
Flow Control:Full/Half Duplex Back Pressure Flow Control
* Interface
RJ45 Port Connectors:10/100Base(X) or 10/100/1000BaseT(X) Auto-Negotiation
Fiber Port Connectors:1000BaseSX/CX/LHX/ZX(SFP slots, LC connectors)
LED Indicators:Power, Port Status, 10/100/1000M
* Power Requirements
Low Voltage Range:12~36VDC; 10~24VAC
High Voltage Range:200~350VDC; 165~265VAC
Connection:Standard 4 Pin Dual Power Connector
* Optical Fiber
| Mode | Typical Dist | Wavelength | Cable Size | TX Power | Rx Sensitivity | Transmission speed |
| Multi | 2km | 1310nm | 62.5/125um | -23.5~-14dBm | < -35dBm | 10/100/1000Mbps |
| Single | 15km | 1310nm | 9/125um | -15~-8dBm | < -35dBm | 10/100/1000Mbps |
* Physical Characteristics
Case:Slim Metal Case, IP40 Design
Dimensions:(W×H×D):
HFD10-2G:89×144×125mm
HFD18-2G:70×149×130mm
HFD28-4G:91×166×130mm
DIN Rail or Panel Mounting
* Environment Limits
Standard Temp Models:-10℃ to 60℃
Extended Temp Models:-40℃ to 75℃
Storage Temperature:-40 to 85℃
Ambient Relative Humidity: 10 to 95%(Non-condensing)
* Agency Approvals
EMI:FCC Part15, CISPR(EN55022) Class A
EMS:
EN61000-4-2(ESD), Lv3
EN61000-4-3(RS), Lv3
EN61000-4-4(EFT), Lv3
EN61000-4-5(Surge), Lv3
EN61000-4-6(CS), Lv3
* Warranty
Warranty Period:5 years
* Ordering Information
| Product Model | Connectors | |||||
| Standard Temperature Models(-10℃~60℃) | Extended Temperature Models(-40℃~75℃) | 10/100/ 1000BaseT(X) Or 1000Base SFP |
10/100 BaseT(X) |
100BaseFX | ||
| Multi-mode, SC Connectors | Single-mode, SC Connectors | |||||
| HFD10-2G Series | ||||||
| HFD10-2G | HFD10-2G-W | 2 | 8 | |||
| HFD10-2G-2SC | HFD10-2G-2SC-W | 2 | 6 | 2 | ||
| HFD10-2G-2SSC | HFD10-2G-2SSC-W | 2 | 6 | 2 | ||
| HFD10-2G-4SC | HFD10-2G-4SC-W | 2 | 4 | 4 | ||
| HFD10-2G-4SSC | HFD10-2G-4SSC-W | 2 | 4 | 4 | ||
| HFD18-2G Series | ||||||
| HFD18-2G | HFD18-2G-W | 2 | 16 | |||
| HFD18-2G-2SC | HFD18-2G-2SC-W | 2 | 14 | 2 | ||
| HFD18-2G-2SSC | HFD18-2G-2SSC-W | 2 | 14 | 2 | ||
| HFD18-2G-4SC | HFD18-2G-4SC-W | 2 | 12 | 4 | ||
| HFD18-2G-4SSC | HFD18-2G-4SSC-W | 2 | 12 | 4 | ||
| HFD28-4G Series | ||||||
| HFD28-4G | HFD28-4G-W | 4 | 24 | |||
| HFD28-4G-2SC | HFD28-4G-2SC-W | 4 | 22 | 2 | ||
| HFD28-4G-2SSC | HFD28-4G-2SSC-W | 4 | 22 | 2 | ||
| HFD28-4G-4SC | HFD28-4G-4SC-W | 4 | 20 | 4 | ||
| HFD28-4G-4SSC | HFD28-4G-4SSC-W | 4 | 20 | 4 | ||
| HFD28-4G-6SC | HFD28-4G-6SC-W | 4 | 18 | 6 | ||
| HFD28-4G-6SSC | HFD28-4G-6SSC-W | 4 | 18 | 6 | ||
* All fiber cables can be equipped with ST or SC connectors
* Typical Distance:Multi mode<15km; Single mode: Ranging from 15km to 120km
* The standard models are powered by 24VDC,110-220VAC/DC customized models are also available
