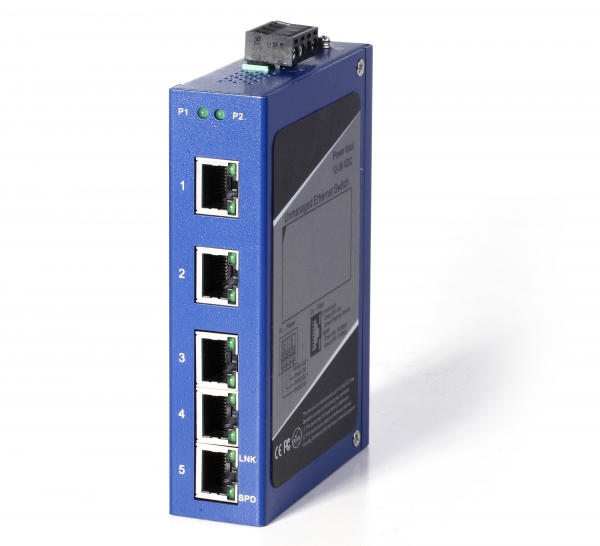

DIN-rail Unmanaged Industrial Ethernet Switch with 10/100M
10/100BaseT(X), 100BaseFX(SC/ST Connectors)
Low Voltage redeundant AC/DC Power Inputs
Metal Case with IP40 Protection
Broadcasting Storm Control
Operating Temperature:-40℃~75℃
Specifications
Technology
- Network Standards:
- IEEE802.3 10Base-T
- IEEE802.3u 100BaseT(X) and 100BaseFX
- IEEE802.3x Flow Control
- Processing Type:Store and Forward
- MAC Address:8K MAC Address Table
- Broadcasting Storm Control:Automatic
- Flow Control:Full/Half Duplex Back Pressure Flow Control
Interface
- RJ45 Port Connectors:10/100Base Auto-sensing, Full/Half Duplex MDI/MDI-X Auto-Negotiation
- Fiber Port Connectors:100BaseFX, SC or ST connectors, Single-Mode or Multi-Mode
- LED Indicators:Power, Port Status
Power Requirements
- Low Voltage Range:12~36VDC; 10~24VAC
- High Voltage Range:200~350VDC; 165~265VAC
- Connection:Standard 4 Pin Dual Power Connector
Optical Fiber
| Mode | Typical Dist | Wavelength | Cable Size | TX Power | Rx Sensitivity | Transmission speed |
| Multi | 2km | 1310nm | 62.5/125um | -23.5~-14dBm | < -35dBm | 10/100Mbps |
| Single | 15km | 1310nm | 9/125um | -15~-8dBm | < -35dBm | 10/100Mbps |
Physical Characteristics
- Case:Slim Metal Case, IP40 Design
- Dimensions:(W×H×D):
- HFD5:30×127×80mm
- HFD8:44×130×95mm
- HFD16:70×149×130mm
- HFD24:91×149×130mm
- DIN Rail or Panel Mounting
Environment Limits
- Standard Temp Models:-10˚C to 60˚C
- Extended Temp Models:-40˚C to 75˚C
- Storage Temperature:-40 to 85℃
- Ambient Relative Humidity: 10 to 95%(Non-condensing)
Agency Approvals
- EMI:FCC Part15, CISPR(EN55022) Class A
- EMS:
EN61000-4-2(ESD), Lv3
EN61000-4-3(RS), Lv3
EN61000-4-4(EFT), Lv3
EN61000-4-5(Surge), Lv3
EN61000-4-6(CS), Lv3
Warranty
Warranty Period:5 years
Ordering Information
| Product Model | Connectors | ||||
| Standard Temperature Models(-10℃~60℃) | Extended Temperature Models(-40℃~75℃) | 10/100BaseT(X) | 100BaseFX | ||
| MM, SC Connectors | SM, SC Connectors | ||||
| HFD5 Series | |||||
| HFD5 | HFD5-W | 5 | |||
| HFD5-SC | HFD5-SC-W | 4 | 1 | ||
| HFD5-SSC | HFD5-SSC-W | 4 | 1 | ||
| HFD5-2SC | HFD5-2SC-W | 3 | 2 | ||
| HFD5-2SSC | HFD5-2SSC-W | 3 | 2 | ||
| HFD8 Series | |||||
| HFD8 | HFD8-W | 8 | |||
| HFD8-2SC | HFD8-2SC-W | 6 | 2 | ||
| HFD8-2SSC | HFD8-2SSC-W | 6 | 2 | ||
| HFD8-4SC | HFD8-4SC-W | 4 | 4 | ||
| HFD8-4SSC | HFD8-4SSC-W | 4 | 4 | ||
| HFD16 Series | |||||
| HFD16 | HFD16-W | 16 | |||
| HFD16-2SC | HFD16-2SC-W | 14 | 2 | ||
| HFD16-2SSC | HFD16-2SSC-W | 14 | 2 | ||
| HFD16-4SC | HFD16-4SC-W | 12 | 4 | ||
| HFD16-4SSC | HFD16-4SSC-W | 12 | 4 | ||
| HFD24 Series | |||||
| HFD24 | HFD24-W | 24 | |||
| HFD24-2SC | HFD24-2SC-W | 22 | 2 | ||
| HFD24-2SSC | HFD24-2SSC-W | 22 | 2 | ||
| HFD24-4SC | HFD24-4SC-W | 20 | 4 | ||
| HFD24-4SSC | HFD24-4SSC-W | 20 | 4 | ||
| HFD24-6SC | HFD24-6SC-W | 18 | 6 | ||
| HFD24-6SSC | HFD24-6SSC-W | 18 | 6 | ||
- All fiber cables can be equipped with ST or SC connectors
- Typical Distance:Multi mode<15km; Single mode: Ranging from 15km to 120km
- The standard models are powered by 24VDC, 110-220VAC/DC customized models are also available
