Generator Protection Relay

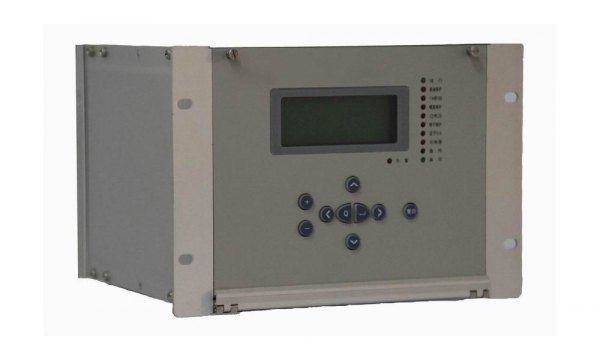

BEPR-560U Generator Protection Device

(Suitable for the generator from 10MW to 100MW)

Description

BEPR-560U generator protection device is designed specifically for small sized generators.

The device has the following features:

Product Feature and Benefits

• USES the international most popular fast processors, frequency is 166 MHz, the built-in rich resources, simple peripheral circuit design, ensure the manufacturing quality and stability of the product. Sufficient hardware resources, 4 MB Flash Memory storage, 8 MB SDRAM.
• Measure three phase current (Ia, Ib, Ic), three phase voltage (Uan, Ubn, Ucn), active power P and reactive power Q, power factor cos phi, frequency F.
• Most 10 road  input intake interface which users can customize name.
• Protection components's outlet style by trip matrix setting, convenient for users to choose to the action of the relay. All relay output interface can choose for the tripping contact (to be automatic return) or signal contact (return back).
• Oneself take operation can be adaptive 0.5 A ~ 5 A jump switching current switch.
• The style of GPS clock Correction time uses hard contact points of pulse pair.
• Differential protection is a criterion to prevent the equipment start or outside a failure of the criterion of TA saturation cause the differential protection misoperation.
• Effective and reliable criterion PT wire break, effectively prevent the  motor's low voltage components misoperation.
• 100 M Ethernet communication interface, supports IEC60870-5-103 specifications.
• 9 of the fault wave record, each wave record contains 1.9 seconds sample point and amplitude wave record, the sampling point wave record largest contains 14  road simulation (interval is 1 ms), amplitude wave record largest contains 40  analog amplitude and 32 switch for 5 ms (interval). Article 2 the motor start wave record (interval is 100 ms), before the start of the 1 s, started 29 s.
• Using the graphical programming technology, as well as a stable and reliable protection relay library, improve the reliability and validity of the program.
• The machine static low power consumption (about 6 w), LCD module to adopt new technology, life is greatly improved.
• High anti-jamming performance, through 10 emc certification testing, transient, electrostatic discharge, surge anti-jamming performance achieves the highest grade (grade Ⅳ) standard.
• working environment temperature range: 25 ℃ ~ + 55 ℃ (LCD no vague, dull phenomenon).

Technical Specifications

Operating environment

• Working temperature:-20℃～60℃, average temperature within 24 hours does not exceed 35℃.
• Storage temperature:-25℃～80℃, not apply excitation at limiting value; irreversible changes will not occur in the device. The device should normally work after temperature is recovered.
• Relative humidity: not more than 95% (without dew).
• Atmospheric pressure: 80～110kPa (below relative sea-level elevation of 2KM).

Nominal parameters

• Rated DC voltage: 220V), around 10W, fluctuation range: -20%～ +10%.
• Rated AC data:
• Phase voltage: V
• Line voltage: 100V
• AC: 5A/1A (indicated in the order)
• Rate frequency: 50Hz

Technical parameters of device

• Input circuit: 24V D.C. 2.4mA at each point
• Output contact rating: 30W(τ=5ms), 220V D.C.or 0.5A D.C.
• Trip time: ＜20ms
• Each phase of AC voltage circuit of the device at nominal parameter ≤0.2VA
• Each phase of AC current circuit of the device at nominal parameter≤0.3VA
• Voltage, current and power: 0.5 grade
• Phase angle measurement error ≤1°
• Impedance measurement error ≤5%

Application

Generator's protection from 10MW to 100MW
