CAN Bus Router

4 Port Manageable CAN Switch(CAN Router)

Description of CAN Bus Switch:

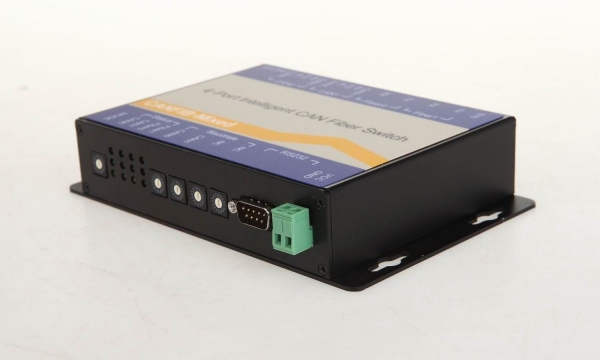

The SW-400T CAN Bus Switch is a new CAN bus switch that combined the world's most advanced technology into it. There are 4 independent CAN channels who can communicate with each other with different or same baud rates. This new topology could resolve the complex CAN bus application, like industrial automation, building automation, Alarm System,ITS, and etc. The SW-400T CAN switch can run to 6000 to 6500 frames/second and it has buffering to ensure the reliability of the CAN data transmission. It helps users to extend the CAN network system. The SW-400T comes with configurable software and UART console port.

Product Features of CANbus Switch:

4 CAN bus ports(Configurable)Compatible with CAN specification 2.0A and 2.0BFully compatible with the ISO 11898-2 standardBaud rate : 0-1MB, Can be configured by softwareCAN bus filter is configurable1500 data frames buffer for each CAN channelMax data flow up to 6500 frames in totalSelectable baud rate by rotary switchSelectable 120Ω terminator resistor by DIP switchLED for CAN reception and transmissionSupport CAN network with star or tree topologyDifferent baud rates can communicate in the switch

Other Specifications of CAN Bus Switch:

Hardware

Controller High Performance Microcontroller

CAN Interface

CAN: 4 Ports Block terminal connector

CAN Standard: ISO-11898-2, CAN 2.0A and CAN 2.0B

Baud Rate (bps): 0-1MB

Baud Rate Setting up: By rotary switch

Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple

Terminator Resistor Selectable 120Ω terminator resistor by internal jump

Transmission Distance (m) Depend on baud rate (for example, max. 1000 m at 50 kbps )

CAN Filter Configurable by user

Console Interface

RS-232 1 port (for configuration)

Power

Input range Unregulated +9 ~ +40 VDC

Power Consumption 1.5W

Mechanism

Installation Wall-Mounting

Casing Aluminum metallic case

Dimensions 156 x 108 x 33.6 mm (WxDxH)

Environment

Operating Temp. -30 ~ 80 ℃

Storage Temp. -35 ~ 90 ℃

Humidity 10 ~ 95% RH, non-condensing

ESD protection 10 kV Contact for each channel

EFT protection 500V for signal, 1000V for power

Application of the CAN Bus Switch:

ITS,Power automation,Industrial Automation,Fire Alarm System,Lift control,etc.
