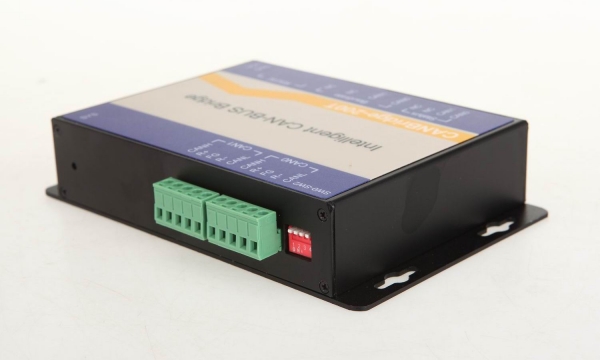

The BRIDGE-200T Series CAN Bus Isolated Repeater utilizes automatic bidirectional switching requiring no control signal. This product can insulate CAN bus for a distance up to 10Km. This product enables equipment connections to the bus to be doubled. All upper levels protocol is supported.It has software in it,so both CANbus sides' baud rate can be set up by software.

Feature & Benefits:

The CANbridge allows the coupling of two CAN networks, including networks with different baud rates. Unlike a CAN Repeater, which only translates the electric signals, the CAN messages are received completely by the CANbridge and then sent to the other CAN network in line with existing filter and conversion rules (Store-Forward principle). With the aid of conversion rules (gateway tables), CAN messages can be filtered or forwarded under another identifier. With these mechanisms, the bus load can be reduced in the individual networks by only sending messages which are of interest to the other network.

The Series CAN Bus Isolated Repeater can be widely used, such as Industrial Controls, Intelligent Transportation Systems (ITS), Industrial Networking,

Supervisory Control and Data (SCADA) and so on.

Other Specs:

Linking two CAN nets with data bufferingDifferent bit rates on the CAN nets possible11-bit ID and 29-bit ID bridgeInternal microcontroller MB90F543High-Speed CAN interface acc. to ISO 11898-2, 1 Mbit/sElectrical isolation by optocouplers and DC/DC-convertersConfiguration of the CAN-CBM-Bridge/2 module is easily done by means of a PC/terminalIsolation 3000VsmLightning/Surge Protection 1~2 lightning strikesESD Protection 15KV

CAN BUS:

Connector Type TerminalData Rate DC 0-1MbpsExtended Distance 10KmOperating Temperature -40 ~ 70C / -40 ~ +158FOperating Humidity 0 ~ 95% non-condensingMean Time Between Failure (MTBF) > 70, 000hrsPower Supply Input Voltage 9~40V DCPower Supply Output Voltage 5V DCDimensions (W × D× W) 156mm× 108mm× 33.6mm
